고객중심의 맞춤형 검사장비 및 자동화설비를 제작합니다.
휴대폰, 반도체 등 HIGH-END 제품의 테스트 장비를 제작합니다.
공장자동화 구축으로 생산효율 극대화를 추구합니다.
Industrial Automation
고객의 요구를 충족시키는 경쟁력
전 세계 제조업체는 생산성을 높이고 작업장 부상을 줄이고 프로세스를 간소화하기
위해 산업 자동화에 의존합니다. 밸류플러스는 제조업체에 효율적이고 유연하며 안전한
자동화를 제공합니다. 당사의 솔루션은 광범위한 생산 작업을 해결하고 용량, 인건비 및
비용 제약에 대처함으로써 즉각적이고 장기적인 가치를 창출합니다. 밸류플러스의 산업
자동화 솔루션으로 비즈니스를 확장하세요!
Auto Test System
Specifications
- Name of Product
- SA - 6400
- Test & Communication Spec
-
USB3.0/2.0/1.1 x 64Port
UART 1Mbps x 64port
OTP/Aux-on/Mass Storage x 64port
- Application Model
-
Qualcomm, Agere, NXP, Broadcom, Infineon Etc,
Jmicron, initio, ASMedia
Features
- 4 Types of LED indication
- Stand By (Yellow On) / On test (Green On) / Test OK (Blue On) / Test NG (Red On)
- This test equipment has 64 ports
Built-in software makes one operator test 64 phones at one time in a very
efficient & easy way. Thanks to the LED indicator to show Pass(Blue), Fail(Red),
Stand By (Yellow), it is good enough for one operator to proceed the whole test
just by connecting phones into the ports

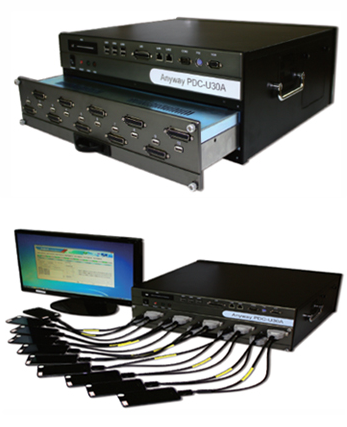

Specifications
- Name of Product
- Anyway PDC-U30A
- CPU
- Intel i5 760, 2.80 GHz 8M
- RAM
- Samsung 4GB (2 x DDR3 2GB, 1.333MHz)
- I/O Communicating
- 1 x 3 PCIe Interface, 10 x USB 3.0, 10 x RS-232C
- I/O
- 6 x USB 2.0, 1 x Power LED, 1 x HDD LED, 1 x Reset Button, 1 x Power SW, 2 x GbE LAN, 1 x DB15 VGA, 1 x PS/2 KB'D & Mouse, 1 x RS-232C, 1 x Jig Status LED Interface
- Intel i5 760, 2.80 GHz 8M
Features
- Offered an easy accessibility and maintenance with Phone Testing JIG
- Supported directly an excellent I/O Connectivity for Phone download with 10 x USB and 10 x RS-232C ports
- Enhanced a usability due to the internal connection of units as integrated the Phone Jig into Main Controller Unit
- Designed as a dedicated modular architecture comprised of Main Controller, Backplane, Super-speed USB 3.0, PSU, and Phone Testing Jig
- Offered the impressive downloading performance through 8-channel parallel USB Structure
